    首頁 >
            品牌 >  BURKERT >  電磁閥

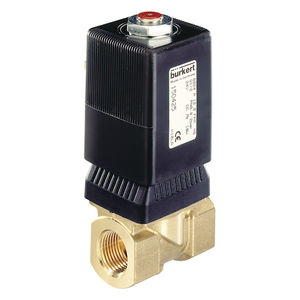

               Burkert寶德直動式二位二通升降式銜鐵閥類型 0255 / 貨號 25250










    • Burkert寶德直動式二位二通升降式銜鐵閥類型 0255 / 貨號 25250
      •

    • Burkert寶德直動式二位二通升降式銜鐵閥類型 0255 / 貨號 25250
      •















    • Burkert寶德直動式二位二通升降式銜鐵閥類型 0255 / 貨號 25250
    • Burkert寶德直動式二位二通升降式銜鐵閥類型 0255 / 貨號 25250
      •







    Burkert寶德直動式二位二通升降式銜鐵閥類型 0255 / 貨號 25250



    兩位兩通直動電磁閥
    • 重疊的線圈系統
    • 緊湊型結構形式

















    • 描述
      •

    • 參數
      •

    • 設備圖片
      •











    技術屬性
    名稱
    金額
    單位
    Type0255
    Operationdirect-acting
    Actuator typePlunger valve
    Main valve operating principleGlobe valve
    Switch functionon/off
    Media separationNo
    Valve functionA - normally closed - inlet port 1 (P/NC)
    Fluidic port connection number2
    Valve function number of switching positions2
    Valve function manual actuationNo
    FlowAbove seat
    Nominal pressure min0bar
    Nominal pressure max (liquid)6bar
    Main valve orifice 1 (P) (mm)5mm
    Main valve orifice 1 (inch)3/16 inch
    Kv value (water)0,65m3/h
    QNn value (gas)700l/min
    Main valve wetted materialStainless steel
    Port connection 1 typeInner thread
    Port connection 1 thread typeG
    Port connection 1 thread marking1/4
    Port connection 2 typeInner thread
    Port connection 2 thread typeG
    Port connection 2 thread marking1/4
    Valve seat materialStainless steel
    Medium-contacting part core materialStainless steel
    Medium-contacting part stopper materialStainless steel
    Seat seal material categoryPlastics
    Seat seal materialPTFE (Polytetrafluorethylene)
    Sealing toward outside materialStainless steel and stainless steel
    Temperature environment max55°C
    Temperature medium min-40°C
    Temperature medium max180°C
    Voltage / rated voltage230V
    Voltage / rated voltage230V
    Voltage tolerance negative10%
    Voltage tolerance positive10%
    Voltage frequency50Hz
    AC voltageYes
    DC voltageNo
    Battery voltageNo
    Rated power consumption10W
    Electrical connection sortPlug pattern form A according to DIN EN 175301-803
    Electrical connection number of contacts2 + Grounding conductor
    Cable plug in deliveryenclosed
    Cable plug art. no. - type00159395 - 2508
    Electrical connection positionin direction of flow left
    Electrical connection output directionbottom
    Protection type (IP max. with suitable connector)IP65
    Coil typeplaced on top
    Coil insulation material (encasement)Epoxy
    Coil size40mm
    Coil wiring overvoltage protectionwithout
    Coil wiring rectifierNo
    Coil wiring polarity recovery diodeNo
    Thermal insulation class of the actuatorH
    Nominal operation/Duty cycle100%
    Switch time open min10ms
    Switch time open max.20ms
    Switch time close min20ms
    Switch time close max.30ms
    Valve setting opening timeNo
    Valve setting closing timeNo
    Back-pressure-resistant versionNo
    Vacuum versionYes
    Analysis versionNo
    Oil burner valveNo
    Steam versionYes
    Low-noise versionNo
    Main valve with integrated screenNo
    Mounting typeMounting bracket
    Valve constructionValve complete
    重量0,724000kg
