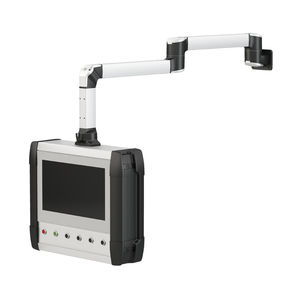

Bernstein 鋁制懸臂系統CS-3000 neXt

集功能性與頗富吸引力的設計于一身。新系統是對CS-3000系列的重要補充。人們可從其易于清潔、簡化安裝、杰出可見特征如，管與組件的流暢過渡和博恩斯坦聲名卓著的品質中獲益匪淺。多種多樣的組件、高強度的系統和負載承受能力，組成了個性化的解決方案。

博恩斯坦CS-3000系列的補充
易于清洗和具有博恩斯坦高品質
多種多樣的組件
高強度系統，承重能力高達50公斤
最大系統長度：1.5米
面板連接器，VESA法蘭尺寸，孔型75和100

立即咨詢下一個產品

描述
參數
設備圖片

物料號碼	類型	PDF	3D PDF	DWG	STEP文件
1017300001 1017300016	Adapter (narrow) for CC-5000 neXt 75 mm section RAL 9006 White aluminum RAL 7016 Anthracite grey
1017300002 1017300017	Coupling, vertical outlet RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300003 1017300018	Elbow coupling, horizontal outlet RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300004 1017300019	Panel coupling, vertical outlet RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300005 1017300020	Panel coupling, horizontal outlet RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300007 1017300022	Elbow RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300008 1017300023	Elbow, rotary RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300009 1017300024	Combination elbow to CS-3000 RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300010 1017300025	Intermediate joint RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300011 1017300026	Wall joint, vertical outlet RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300012 1017300027	Wall joint, horizontal outlet RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300013 1017300028	Base, rotary RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300014 1017300029	Top joint, horizontal outlet RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300015 1017300030	Base / wall flange RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300070 1017300071	Turn/tilt coupling W, horizontal outlet RAL 9006 White aluminium RAL 7016 Anthracite grey
1017300072 1017300073	Turn/tilt coupling S, vertical outlet RAL 9006 White aluminium RAL 7016 Anthracite grey
9806000044 9806000045	Adapter plate VESA 75/100 RAL 9006 White aluminium RAL 7016 Anthracite grey
9524700001	Aluminium connection section Length 55 x 75 x 250 mm
9524700002	Aluminium connection section Length 55 x 75 x 500 mm
9524700003	Aluminium connection section Length 55 x 75 x 750 mm
9524700004	Aluminium connection section Length 55 x 75 x 1000 mm
9524700005	Aluminium connection section Length 55 x 75 x 1250 mm
9524700006	Aluminium connection section Length 55 x 75 x 1500 mm
