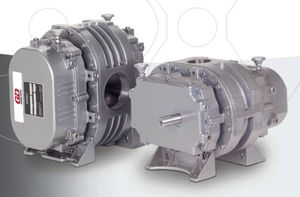

西門子旗下 Gardner Denver 2BH系列泵介紹

2020-03-26

低噪聲水平
可靠耐用
幾乎沒有維護
提供變速驅動
UL/加空局批準
電機符合德國標準EN 60034
IP 55保護等級
IE3 / Nema高級電機應要求提供
提供ATEX版本

體積流量50至2，450米/小時
體積流量29.4至1，441.2 cfm
壓差高達780毫巴

Model	Motor		Max.	Max. Vacuum	Max. Pressure	Weight	Sound level	Connect.
			Flow
	V / PH / HZ	HP	cfm	in WC	in WC	lbs	dB (A)	in NPT
2BH1100-7AC05	575/3/60	0.31	35	48	48	20	53	1.25
2BH1100-7AH06	230-460/3/60
2BH1100-7AV05	115-230/1/60

2BH1200-7AC05	575/3/60	0.39	102	22	22	18	61	1.5
2BH1200-7AH06	230-460/3/60
2BH1200-7AV05	115-230/1/60	0.43

2BH1300-7AC05	575/3/60	0.39	57	40	40	18	56	1.25
2BH1300-7AC15	575/3/60	0.67		60	64	22
2BH1300-7AH06	230-460/3/60	0.39		40	40	18
2BH1300-7AH16	230-460/3/60	0.67		60	64	22
2BH1300-7AV15	115-230/3/60	0.6		52	56	31

2BH1310-7HC25	575/3/60	1.1	60	100	100	44	61	1.25
2BH1310-7HH26	230-460/3/60		60	100	100	44	61	1.25

2BH1330-7AC05	575/3/60	0.39	72	36	32	22	57	1.25
2BH1330-7AC15		0.67		60	64	24
2BH1330-7AC25		1.1		64	72	26
2BH1330-7AH06	230-460/3/60	0.4		36	32	22
2BH1330-7AH16		0.7		60	64	24
2BH1330-7AH26		1.1		64	72	26
2BH1330-7AV25	115-230/1/60	0.6		44	40	23

2BH1400-7AC05	575/3/60	1.1	102	52	52	29	64	1.5
2BH1400-7AC15		1.3		64	64	35
2BH1400-7AC25		2		84	80	42
2BH1400-7AH06	230-460/3/60	1.1		52	52	29
2BH1400-7AH16		1.3		64	64	35
2BH1400-7AH26		2		84	80	42
2BH1400-7AV25	115-230/1/60	1.7		72	76

2BH1410-7HC35	575/3/60	2.8	105	128	124	55	69	1.5
2BH1410-7HC45	575/3/60	3.4		141	177	84
2BH1410-7HH36	230-460/3/60	2.8		128	124	55
2BH1410-7HH46	230-460/3/60	3.4		141	177	84
2BH1410-7HV45	115-230/1/60	2.4		112	104	53

2BH1430-7AC05	575/3/60	1.1	129	24	20	31	65	1.5
2BH1430-7AC15		1.3		36	32	37
2BH1430-7AC25		2		72	68	46
2BH1430-7AH06	230-460/3/60	1.1		24	20	31
2BH1430-7AH16		1.3		36	32	37
2BH1430-7AH26		2		72	68	46
2BH1430-7AV25	115-230/1/60	1.7		56	52	37

2BH1490-7AC15	575/3/60	0.94	105	48	52	31	64	1.5
2BH1490-7AH16	230-460/3/60	1.1		56	56
2BH1490-7AV25	115-230/1/60	1.7				35

2BH1500-7AC05	575/3/60	1.3	148	32	28	44	70	2
2BH1500-7AC15		2		60	56	49
2BH1500-7AC25		2.4		88	84	51
2BH1500-7AC35		3.4		104	116	55
2BH1500-7AH06	230-460/3/60	1.3		32	28	44
2BH1500-7AH16		2		60	56	49
2BH1500-7AH26		2.8		88	84	51
2BH1500-7AH36		3.4		104	116	55
2BH1500-7AV35	115-230/1/60	2.4		72	72	57

2BH1510-7HC45	575/3/60	4.6	160	153	145	88	74	2
2BH1510-7HC55	575/3/60	6.2		165	193	121
2BH1510-7HH46	230-460/3/60	4.6		153	145	86
2BH1510-7HH56	230-460/3/60	6.2		165	193	121

2BH1530-7AC15	575/3/60	2	194	36	32	51	71	2
2BH1530-7AC25		2.8		64	60	53
2BH1530-7AC35		3.4		104	100	82
2BH1530-7AH16	230-460/3/60	2		36	32	51
2BH1530-7AH26		2.8		64	60	53
2BH1530-7AH36		3.4		104	100	82
2BH1530-7AV35	115-230/1/60	2.3		56	52	60

2BH1590-7AC25	575/3/60	2.3	150	72	84	46	70	2
2BH1590-7AH26	230-460/3/60		150	72	84	46	70	2

2BH1600-7AC05	575/3/60	2.4	220	64	60	60	72	2
2BH1600-7AC15		3.4		76	76	66
2BH1600-7AC25		4.6		96	92	79
2BH1600-7AC35		6.2		128	124	110
2BH1600-7AH06	230-460/3/60	2.8		64	60	60
2BH1600-7AH16		3.4		76	76	66
2BH1600-7AH26		4.6		96	92	79
2BH1600-7AH36		6.2		128	124	110

2BH1610-7HC15	575/3/60	3.4	225	68	60	95	75	2
2BH1610-7HC25		4.6		84	72	110
2BH1610-7HC35		6.2		132	128	115
2BH1610-7HC45		8.5		177	177
2BH1610-7HC55		11.5			269	190
2BH1610-7HH16	230-460/3/60	3.4		68	60	95
2BH1610-7HH26		4.6		84	72	110
2BH1610-7HH36		6.2		132	128	115
2BH1610-7HH46		8.5		177	177
2BH1610-7HH56		11.5			269	190

2BH1630-7AC05	575/3/60	2.4	293	44	40	64	73	2
2BH1630-7AC15		3.4		64	60	71
2BH1630-7AC25		4.6		80	68	82
2BH1630-7AC35		6.2		104	104	117
2BH1630-7AH06	230-460/3/60	2.8		44	40	64
2BH1630-7AH16		3.4		64	60	71
2BH1630-7AH26		4.6		80	68	82
2BH1630-7AH36		6.2		104	104	117

2BH1640-7GC35	575/3/60	6.2	352	40	36	119	78	2
2BH1640-7GC45		8.5		84	80	152
2BH1640-7GC55		11.5		108	120	165
2BH1640-7GH36	230-460/3/60	6.2		40	36	119
2BH1640-7GH46		8.5		84	80	152
2BH1640-7GH56		11.5		108	120	165

2BH1690-7AH26	230-460/3/60	4.6	227	96	100	68	72	2

2BH1800-7AC05	575/3/60	6.2	363	72	64	258	74	2.5
2BH1800-7AC15		8.5		120	112	278
2BH1800-7AC25		11.5		141	161	291
2BH1800-7AH06	230-460/3/60	6.2		64	64	258
2BH1800-7AH16		8.5		120	112	278
2BH1800-7AH26		11.5		141	161	291

2BH1810-7HC15	575/3/60	8.5	363	84	80	377	78	2.5
2BH1810-7HC25		11.5		145	132	390
2BH1810-7HC35		16.9		185	241	448
2BH1810-7HC45		23.2		197	313	474
2BH1810-7HH16	230-460/3/60	8.5		84	80	377
2BH1810-7HH26		11.5		145	132	390
2BH1810-7HH36		16.9		185	241	448
2BH1810-7HH46		23.2		197	301	474

2BH1830-7AC05	575/3/60	6.2	495	36	36	247	74	2.5
2BH1830-7AC15		8.5		72	72	284
2BH1830-7AC25		11.5		108	104	298
2BH1830-7AH06	230-460/3/60	6.2		36	36	247
2BH1830-7AH16		8.5		72	72	284
2BH1830-7AH26		11.5		108	104	298

2BH1840-7JC25	575/3/60	11.5	635	84	80	390	78	2.5
2BH1840-7JC35	575/3/60	16.9		128	136	448
2BH1840-7JH26	230-460/3/60	11.5		60	48	390
2BH1840-7JH36	230-460/3/60	16.9		124	141	448

2BH1900-7AC05	575/3/60	13.1	735	60	56	395	79	4
2BH1900-7AC15		19.4		108	104	437
2BH1900-7AC35		28.6		153	169	463
2BH1900-7AH06	230-460/3/60	13.1		60	56	395
2BH1900-7AH16		19.4		108	104	437
2BH1900-7AH36		28.5		153	169	463

2BH1910-7HC15	575/3/60	19.4	785	88	80	591	84	4
2BH1910-7HC25		25.5		136	120	622
2BH1910-7HC35		30.8		177	173	646
2BH1910-7HC45		38.9			217	668
2BH1910-7HH16	230-460/3/60	19.4		88	80	591
2BH1910-7HH26		25.5		136	120	622
2BH1910-7HH36		30.8		177	173	646
2BH1910-7HH46		38.9			217	688

2BH1930-7AC05	575/3/60	13.1	960	32	28	395	80	4
2BH1930-7AC15		19.4		68	60	437
2BH1930-7AC25		23.5		96	88	461
2BH1930-7AC35		28.6		136	128	463
2BH1930-7AH06	230-460/3/60	13.1		32	28	395
2BH1930-7AH16		19.4		68	60	437
2BH1930-7AH26		23.5		96	88	461
2BH1930-7AH36		28.6		136	128	463

2BH1940-7BC25	575/3/60	23.5	1360	24	16	606	84	4
2BH1940-7BC35		30.8		64	52	692
2BH1940-7BC45		38.9		112	100	713
2BH1940-7BH26	230-460/3/60	23.5		24	16	606
2BH1940-7BH36		30.8		64	52	692
2BH1940-7BH46		38.9		112	100	713

2BH1943-7GC25	575/3/60	23.5	1440	48	44	728	84	5
2BH1943-7GC35		30.8		76	72	747
2BH1943-7GC45		38.9		108	92	769
2BH1943-7GH26	230-460/3/60	23.5		48	44	728
2BH1943-7GH36		30.8		76	72	747
2BH1943-7GH46		38.9		108	92	769
