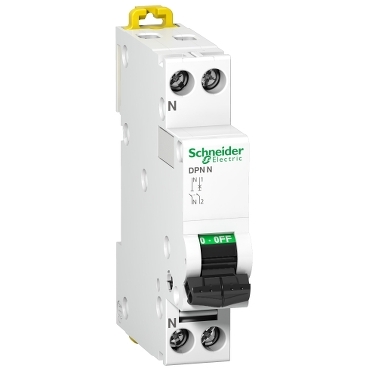

施耐德斷路器iDPN 小型斷路器

特性

產品標準 IEC60898-1/GB10963.1

產品認證 CCC CE

產品極數 1+N

脫扣曲線 C

分斷能力 4.5/6/10kA

額定電流 2~40A

防護等級IP20B(端子) ,IP40(安裝在配電箱中)

使用環境溫度 -25?C~+60?C

儲存環境溫度 -40?C~+85?C

雙鎖固定夾結構

齊全的電氣附件,可實現斷路器狀態的遠程指示: 分斷/閉合/故障脫扣

“上進下出”或“下進上出”的接線方式

質保期 : 18個月

優勢

創奇制勝·躍領巔峰

三級限流

快速閉合

手柄上的綠色標志明確指示觸頭處于斷開位置

正面視窗以紅色指示斷路器故障脫扣

附件齊全,功能強大,新增過欠壓一體式保護附件；

應用

可廣泛應用于民用,商業建筑,以及工業場所等領域的配電保護。

立即咨詢下一個產品

描述
參數
設備圖片

iDPNa “相線+中性線”小型斷路器

A9P08606 iDPNa “相線+中性線”小型斷路器, 1P+N, C曲線, 6A, 230V, 4.5kA iDPN_A9P08606.pdf

A9P08610 iDPNa “相線+中性線”小型斷路器, 1P+N, C曲線, 10A, 230V, 4.5kA iDPN_A9P08610.pdf

A9P08616 iDPNa “相線+中性線”小型斷路器, 1P+N, C曲線, 16A, 230V, 4.5kA iDPN_A9P08616.pdf

A9P08620 iDPNa “相線+中性線”小型斷路器, 1P+N, C曲線, 20A, 230V, 4.5kA iDPN_A9P08620.pdf

A9P08625 iDPNa “相線+中性線”小型斷路器, 1P+N, C曲線, 25A, 230V, 4.5kA iDPN_A9P08625.pdf

A9P08632 iDPNa “相線+中性線”小型斷路器, 1P+N, C曲線, 32A, 230V, 4.5kA iDPN_A9P08632.pdf

A9P08640 iDPNa “相線+中性線”小型斷路器, 1P+N, C曲線, 40A, 230V, 4.5kA iDPN_A9P08640.pdf

iDPNN “相線+中性線”小型斷路器

A9P18602 iDPNN “相線+中性線”小型斷路器, 1P+N, C曲線, 2A, 230V, 6kA iDPN_A9P18602.pdf

A9P18606 iDPNN “相線+中性線”小型斷路器, 1P+N, C曲線, 6A, 230V, 6kA iDPN_A9P18606.pdf

A9P18610 iDPNN “相線+中性線”小型斷路器, 1P+N, C曲線, 10A, 230V, 6kA iDPN_A9P18610.pdf

A9P18616 iDPNN “相線+中性線”小型斷路器, 1P+N, C曲線, 16A, 230V, 6kA iDPN_A9P18616.pdf

A9P18620 iDPNN “相線+中性線”小型斷路器, 1P+N, C曲線, 20A, 230V, 6kA iDPN_A9P18620.pdf

A9P18625 iDPNN “相線+中性線”小型斷路器, 1P+N, C曲線, 25A, 230V, 6kA iDPN_A9P18625.pdf

A9P18632 iDPNN “相線+中性線”小型斷路器, 1P+N, C曲線, 32A, 230V, 6kA iDPN_A9P18632.pdf

A9P18640 iDPNN “相線+中性線”小型斷路器, 1P+N, C曲線, 40A, 230V, 6kA iDPN_A9P18640.pdf

iDPNH “相線+中性線”小型斷路器

A9P28602 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 2A, 230V, 10kA iDPN_A9P28602.pdf

A9P28606 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 6A, 230V, 10kA iDPN_A9P28606.pdf

A9P28610 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 10A, 230V, 10kA iDPN_A9P28610.pdf

A9P28616 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 16A, 230V, 10kA iDPN_A9P28616.pdf

A9P28620 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 20A, 230V, 10kA iDPN_A9P28620.pdf

A9P28625 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 25A, 230V, 10kA iDPN_A9P28625.pdf

A9P28632 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 32A, 230V, 10kA iDPN_A9P28632.pdf

A9P28640 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 40A, 230V, 10kA iDPN_A9P28640.pdf

iDPNK2 “相線+中性線”小型斷路器

A9F18610 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 10A, 230V, 6kA iDPN_A9F18610.pdf

A9F18616 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 16A, 230V, 6kA iDPN_A9F18616.pdf

A9F18620 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 20A, 230V, 6kA iDPN_A9F18620.pdf

A9F18625 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 25A, 230V, 6kA iDPN_A9F18625.pdf

A9F18632 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 32A, 230V, 6kA iDPN_A9F18632.pdf

A9F18640 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 40A, 230V, 6kA iDPN_A9F18640.pdf

A9F18650 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 50A, 230V, 6kA iDPN_A9F18650.pdf

A9F18663 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 63A, 230V, 6kA iDPN_A9F18663.pdf

A9F18650 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 50A, 230V, 6kA iDPN_A9F18650.pdf

A9F18663 iDPNK2 “相線+中性線”小型斷路器, 1P+N, C曲線, 63A, 230V, 6kA iDPN_A9F18663.pdf

iDPNa-K “相線+中性線”小型斷路器

A9P58632 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 32A, 230V, 4.5kA iDPN_A9P58632.pdf

A9P58625 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 25A, 230V, 4.5kA iDPN_A9P58625.pdf

A9P58620 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 20A, 230V, 4.5kA iDPN_A9P58620.pdf

A9P58616 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 16A, 230V, 4.5kA iDPN_A9P58616.pdf

A9P58610 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 10A, 230V, 4.5kA iDPN_A9P58610.pdf

A9P58606 iDPNH “相線+中性線”小型斷路器, 1P+N, C曲線, 6A, 230V, 4.5kA iDPN_A9P58606.pdf

暫無
