GEFRAN指示器和報警單元 Temperature, position linear inputs 40T96 Indicator/Alarm Unit

Overview

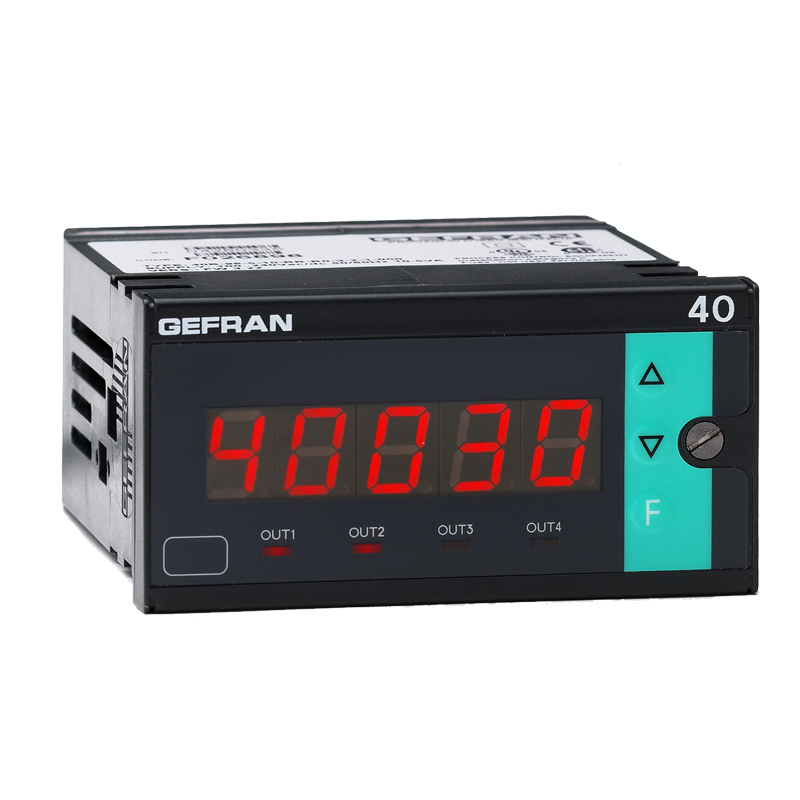

基于微處理器使用表面貼裝技術制作的96x48 (1/8 DIN)尺寸指示器。儀表有個聚酯膜面板（保證IP65），有3個按鍵，一個3/4位數顯示格式，3個用于輸出狀態的指示LED。

可從各種傳感器中選擇輸入信號:

熱電偶類型J, K, R, S, T, B, E, N, L GOST, U, G, D, C
熱電阻Pt100, Pt100J (日標) 2 / 3線。
PTC 和NTC熱敏電阻
線性輸入（0 – 60）/（12- 60）mV, （0 -20）/(4 -20)mA, (0- 10)/(2 -10)/(0 – 5)/(1-5)/(0 -1)/(0.2 -1)V

使用面板按鍵選擇模式。
儀表的基本版本可用的，拓展版本有2個輸出繼電器（2R）。
儀表最多4個輸出，機械式繼電器(5A,250Vac/30Vdc cosφ=1)或邏輯輸出(0 到 11Vdc).
一個數字量輸入(24Vdc/5mA)可用（復位、保持、閃爍、峰值處理或閥值釋放）和一個0...10V或0/4 - 20mA (最大. 500)輸出可用于轉發測量輸入信號。
轉發輸出，數字量輸入和第三個輸出同時使用。
串口通信選項（使用RS485標準）允許通過兩種協議連接到監控系統和PLC：杰佛倫 CENCAL和 MODBUS RTU。最終，一個觸發點（替代輸出1）可適應驅動240V下最大1A的阻性負載。
儀表通過把參數分組到功能塊里（CGF表示報警滯后，Inp表示輸入，Out表示輸出...）和簡化數據錄入菜單使編輯變的容易。

配置更簡單甚至更進一步使用電腦編程工具它由連接電纜和運行在windows系統的菜單引導程序組成(見技術數據表：GF_eXpress)。
一個配置的個人軟件保護代碼（密碼保護）用來限制編輯和顯示配置參數的等級。

Description

面板配置輸入
個人密碼保護
可由串口配置
內置變送器電源
可自定義熱電偶線性化
工程單位內部線性化
提供常用物理單位
采樣時間和行程干預可編輯在15和120msec之間，解析度在4000到16000步之間。
轉發被測量信號
4個觸發點完全由鍵盤配置
光電隔離的RS485串口線
協議：杰佛倫 CENCAL 或MODBUS RTU
電腦GF_eXpress程序包快速配置

立即咨詢下一個產品

描述
參數
設備圖片

F026739 40T96-3-00-2R00-000

F028404 40T96-3-00-2R00-001

F000947 40T96-3-00-RD00-001 (EX 40T96-3-00-RD001

F000945 40T96-3-00-RR00-000 (EX 40T96-3-00-RR000

F000946 40T96-3-00-RR00-001 (EX 40T96-3-00-RR001

F050131 40T96-3-00-RR00-020

F052914 40T96-3-00-RR00-021

F029688 40T96-3-00-RR00-101

F028159 40T96-3-00-RR00-200

F026793 40T96-3-00-RR00-201

F027056 40T96-3-00-RR00-301

F028405 40T96-3-00-RRR0-000

F025524 40T96-3-00-RRR0-001 (EX 40T96-3-00-RRR01

F030571 40T96-3-00-RRR0-201

F043987 40T96-3-00-RRR0-301

F044326 40T96-3-00-RRRR-000

F030146 40T96-3-00-RRRR-001

F031465 40T96-3-00-T000-000

F036207 40T96-3-01-RR00-000

F028406 40T96-3-01-RR00-001

F043351 40T96-3-01-RR00-101

F029635 40T96-3-01-RR00-200

F028746 40T96-3-01-RR00-201

F049089 40T96-3-15-RR00-100

F000955 40T96-3-15-RR00-101 (EX 40T96-3-15-RR011

F026740 40T96-3-24-2R00-000

F030900 40T96-3-24-2R00-001

F041324 40T96-3-24-RDRR-100

F000948 40T96-3-24-RR00-000 (EX 40T96-3-24-RR000

F000950 40T96-3-24-RR00-001 (EX 40T96-3-24-RR001

F045172 40T96-3-24-RR00-021

F039051 40T96-3-24-RR00-100

F035324 40T96-3-24-RR00-200

F027976 40T96-3-24-RR00-201

F049088 40T96-3-24-RR00-221

F050049 40T96-3-24-RR00-321

F035045 40T96-3-24-RRR0-000

F000951 40T96-3-24-RRR0-001 (EX 40T96-3-24-RRR01

F025999 40T96-3-24-RRR0-201 (EX 40T96-3-24-RRR21

F000952 40T96-3-24-RRR0-300 (EX 40T96-3-24-RRR30

F000954 40T96-3-24-RRR0-301 (EX 40T96-3-24-RRR31

F027128 40T96-3-24-RRR0-320

F027127 40T96-3-24-RRR0-321

F032205 40T96-3-24-RRRR-000

F037478 40T96-3-99-RRR0-201

F056077 40T96-3-99-RRRR-100

F033566 40T96-3-99-RRRR-101

F024138 40T96-4-00-2R00-000

F024136 40T96-4-00-2R00-001

F029774 40T96-4-00-RD00-000

F000965 40T96-4-00-RD00-001 (EX 40T96-4-00-RD001

F040830 40T96-4-00-RD00-200

F041673 40T96-4-00-RD00-201

F055942 40T96-4-00-RDR0-000

F028945 40T96-4-00-RDR0-001

F028302 40T96-4-00-RDRR-001

F000193 40T96-4-00-RR00-000 (EX 40T96-4-00-RR000

F000194 40T96-4-00-RR00-001 (EX 40T96-4-00-RR001

F027836 40T96-4-00-RR00-020

F027200 40T96-4-00-RR00-021

F000956 40T96-4-00-RR00-100 (EX 40T96-4-00-RR010

F000957 40T96-4-00-RR00-101 (EX 40T96-4-00-RR011

F027535 40T96-4-00-RR00-120

F026566 40T96-4-00-RR00-121

F000958 40T96-4-00-RR00-200 (EX 40T96-4-00-RR020

F000960 40T96-4-00-RR00-201 (EX 40T96-4-00-RR021

F027621 40T96-4-00-RR00-220

F032136 40T96-4-00-RR00-221

F028366 40T96-4-00-RR00-300

F000961 40T96-4-00-RR00-301 (EX 40T96-4-00-RR031

F059738 40T96-4-00-RR00-320

F027259 40T96-4-00-RR00-321

F000962 40T96-4-00-RRR0-000 (EX 40T96-4-00-RRR00

F000195 40T96-4-00-RRR0-001 (EX 40T96-4-00-RRR01

F028233 40T96-4-00-RRR0-021

F034774 40T96-4-00-RRR0-100

F028878 40T96-4-00-RRR0-101

F027057 40T96-4-00-RRR0-200

F000963 40T96-4-00-RRR0-201 (EX 40T96-4-00-RRR21

F028254 40T96-4-00-RRR0-221

F027533 40T96-4-00-RRR0-300

F000964 40T96-4-00-RRR0-301 (EX 40T96-4-00-RRR31

F041327 40T96-4-00-RRR0-321

F027184 40T96-4-00-RRRR-000

F026532 40T96-4-00-RRRR-001

F043688 40T96-4-00-RRRR-020

F055282 40T96-4-00-RRRR-021

F033666 40T96-4-00-RRRR-100

F029030 40T96-4-00-RRRR-101

F062628 40T96-4-00-T000-000

F036351 40T96-4-00-T000-001

F054114 40T96-4-00-T000-020

F054115 40T96-4-00-T000-021

F000202 40T96-4-01-RR00-000 (EX 40T96-4-01-RR000

F000203 40T96-4-01-RR00-001 (EX 40T96-4-01-RR001

F046756 40T96-4-01-RR00-020

F031336 40T96-4-01-RR00-021

F000984 40T96-4-01-RR00-100 (EX 40T96-4-01-RR010

F000204 40T96-4-01-RR00-101 (EX 40T96-4-01-RR011

F041204 40T96-4-01-RR00-120

F000985 40T96-4-01-RR00-200

F000986 40T96-4-01-RR00-201 (EX 40T96-4-01-RR021

F042913 40T96-4-01-RR00-220

F045834 40T96-4-01-RR00-221

F035900 40T96-4-01-RR00-300

F000987 40T96-4-01-RR00-301 (EX 40T96-4-01-RR031

F040703 40T96-4-01-RR00-321

F031789 40T96-4-01-RRR0-000

F000988 40T96-4-01-RRR0-001 (EX 40T96-4-01-RRR01

F000989 40T96-4-01-RRR0-100 (EX 40T96-4-01-RRR10

F035099 40T96-4-01-RRR0-101

F000990 40T96-4-01-RRR0-200 (EX 40T96-4-01-RRR20

F036677 40T96-4-01-RRR0-201

F051112 40T96-4-01-RRR0-221

F029805 40T96-4-01-RRR0-300

F000991 40T96-4-01-RRR0-301 (EX 40T96-4-01-RRR31

F029126 40T96-4-01-RRRR-000

F028075 40T96-4-01-RRRR-001

F048886 40T96-4-01-RRRR-101

F049488 40T96-4-01-T000-201

F000992 40T96-4-15-RR00-000 (EX 40T96-4-15-RR000

F000205 40T96-4-15-RR00-001 (EX 40T96-4-15-RR001

F027856 40T96-4-15-RR00-020

F027857 40T96-4-15-RR00-021

F049125 40T96-4-15-RR00-100

F041619 40T96-4-15-RR00-101

F034110 40T96-4-15-RR00-200

F027569 40T96-4-15-RR00-201

F042069 40T96-4-15-RR00-221

F051397 40T96-4-15-RR00-300

F025851 40T96-4-15-RR00-301 (EX 40T96-4-15-RR031

F043447 40T96-4-15-RRR0-000

F056701 40T96-4-15-RRR0-101

F056668 40T96-4-15-RRR0-300

F028453 40T96-4-15-RRRR-000

F041863 40T96-4-15-RRRR-001

F026037 40T96-4-24-2R00-000

F027010 40T96-4-24-2R00-001

F028903 40T96-4-24-RD00-300

F029397 40T96-4-24-RD00-301

F049888 40T96-4-24-RDR0-200

F000979 40T96-4-24-RDR0-201 (EX 40T96-4-24-RDR21

F026039 40T96-4-24-RDR0-321

F027122 40T96-4-24-RDRR-100

F000196 40T96-4-24-RR00-000 (EX 40T96-4-24-RR000

F000197 40T96-4-24-RR00-001 (EX 40T96-4-24-RR001

F032917 40T96-4-24-RR00-020

F027680 40T96-4-24-RR00-021

F000969 40T96-4-24-RR00-100

F000970 40T96-4-24-RR00-101 (EX 40T96-4-24-RR011

F029246 40T96-4-24-RR00-121

F000971 40T96-4-24-RR00-200 (EX 40T96-4-24-RR020

F000973 40T96-4-24-RR00-201 (EX 40T96-4-24-RR021

F026577 40T96-4-24-RR00-220

F027980 40T96-4-24-RR00-221

F025891 40T96-4-24-RR00-300 (EX 40T96-4-24-RR030

F000198 40T96-4-24-RR00-301 (EX 40T96-4-24-RR031

F049969 40T96-4-24-RR00-320

F028750 40T96-4-24-RR00-321

F000974 40T96-4-24-RRR0-000 (EX 40T96-4-24-RRR00

F000199 40T96-4-24-RRR0-001 (EX 40T96-4-24-RRR01

F028862 40T96-4-24-RRR0-020

F052345 40T96-4-24-RRR0-021

F030027 40T96-4-24-RRR0-100

F044066 40T96-4-24-RRR0-101

F032600 40T96-4-24-RRR0-200

F000976 40T96-4-24-RRR0-201 (EX 40T96-4-24-RRR21

F000200 40T96-4-24-RRR0-300 (EX 40T96-4-24-RRR30

F000201 40T96-4-24-RRR0-301 (EX 40T96-4-24-RRR31

F027129 40T96-4-24-RRR0-321

F026744 40T96-4-24-RRRR-000

F026745 40T96-4-24-RRRR-001

F043687 40T96-4-24-RRRR-020

F049252 40T96-4-24-RRRR-021

F050097 40T96-4-24-RRRR-100

F027120 40T96-4-24-RRRR-101

F027126 40T96-4-24-T0R0-301

F027130 40T96-4-24-T0R0-320

F069593 40T96-4-99-RD00-200

F055806 40T96-4-99-RDR0-300

F061048 40T96-4-99-RDR0-301

F029275 40T96-4-99-RR00-000

F028454 40T96-4-99-RR00-001

F052107 40T96-4-99-RR00-020

F031409 40T96-4-99-RR00-021

F046994 40T96-4-99-RR00-100

F046238 40T96-4-99-RR00-101

F037532 40T96-4-99-RR00-120

F034060 40T96-4-99-RR00-200

F028494 40T96-4-99-RR00-201

F056048 40T96-4-99-RR00-221

F031393 40T96-4-99-RR00-300

F030132 40T96-4-99-RR00-301

F041996 40T96-4-99-RR00-321

F029002 40T96-4-99-RRR0-000

F029001 40T96-4-99-RRR0-001

F049090 40T96-4-99-RRR0-200

F035442 40T96-4-99-RRR0-201

F032273 40T96-4-99-RRR0-300

F029862 40T96-4-99-RRR0-301

F046620 40T96-4-99-RRR0-321

F029295 40T96-4-99-RRRR-000

F029368 40T96-4-99-RRRR-001

F049556 40T96-4-99-RRRR-100

F041574 40T96-4-99-RRRR-101

F038544 40T96-4-99-RRRR-121
