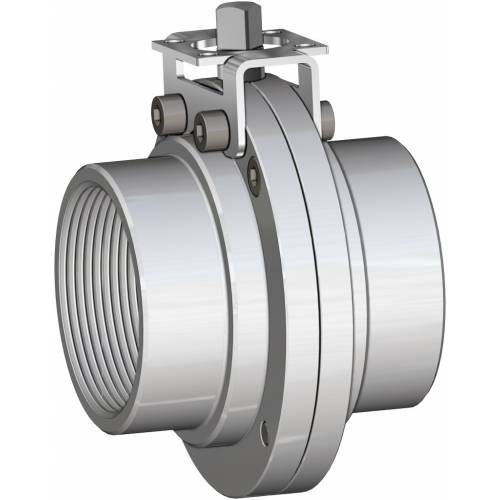

OMAL衛生級蝶閥 Item 490-492-493

標準執行:
-閥門材質：304不銹鋼 (Item 90-492-493) ；316L不銹鋼(Item 494)
-適用于食品工業。
-工作溫度:0℃至+150℃
-工作壓力:PN 6
-流體系列:食品工業。
-連接:
氣體螺紋符合德國工業標準/國際標準化組織228/1；
食品工業用DIN 11851螺紋；
根據德國工業標準11850-1進行對接焊接；
夾具BS 4825(德國工業標準32676系列)
-表面處理:拋光。

應要求:
-螺紋1146
-螺紋MACON
-夾具DIN 32676系列
-夾具ISO 2852
-對于其他應用，請聯系我們的銷售部門。
產品資料
2-4-ITEM490-492-493-494.pdf

立即咨詢下一個產品

描述
參數
設備圖片

ITEM 490-492-493

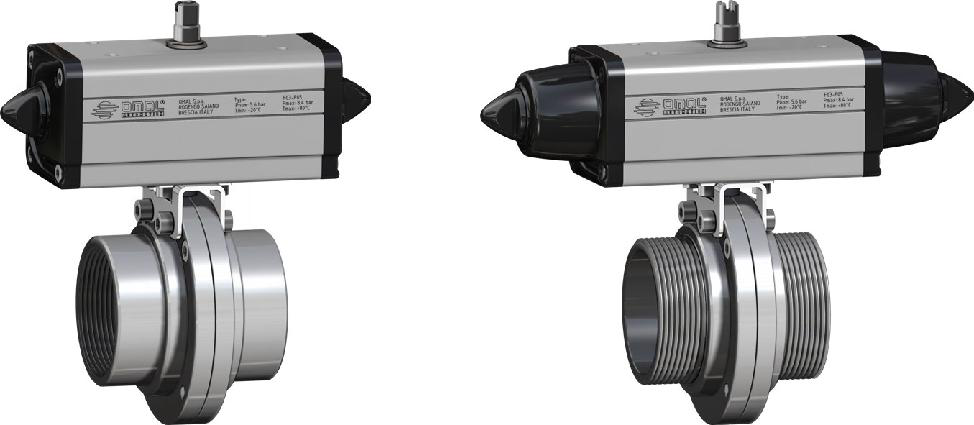

OMAL衛生級球閥 Item 490-492-493

CON ATTUATORE PNEUMATICO DOPPIO EFFETTO *WITH DOUBLE ACTING PNEUMATIC ACTUATOR*
MISURA	*SIZE*	ARTICOLO “F/F GAS”	ARTICOLO “F/F DIN”	ARTICOLO saldare di testa	ATTUATORE	KIT montaggio	L	H	Kg
DN [mm]	[inch]	*ITEM CODE “F/F GAS”*	*ITEM CODE “F/F DIN”*	*ITEM CODE butt weld*	*ACTUATOR*	*Mounting KIT*	[mm]	[mm]	Kg
DN [mm]	[inch]	*ITEM CODE “F/F GAS”*	*ITEM CODE “F/F DIN”*	*ITEM CODE butt weld*	*ACTUATOR*	*Mounting KIT*	[mm]	[mm]

DN 25	1"	DG490H006	DG492H066	DG493H086	DAN0015411S	KCF042253	159,0	120,2	1,6
DN 32	1" 1/4	DG490H007	DG492H067	DG493H087	DAN0015411S	KCF042253	159,0	125,2	1,7
DN 40	1" 1/2	DG490H008	DG492H068	DG493H088	DAN0015411S	KCF042253	159,0	127,2	2,2
DN 50	2"	DG490H009	DG492H069	DG493H089	DAN0030411S	KCF042253	174,2	140,2	2,9
DN 65	2" 1/2	DG490H010	DG492H070	DG493H090	DAN0045412S	KCF042254	188,5	155,5	3,4
DN 80	3"	DG490H011	DG492H071	DG493H091	DAN0060412S	KCF052256	198,0	168,4	4,3
DN 100	4"	DG490H012	DG492H072	DG493H092	DAN0106411S	KCF072257	237,0	193,3	6,5

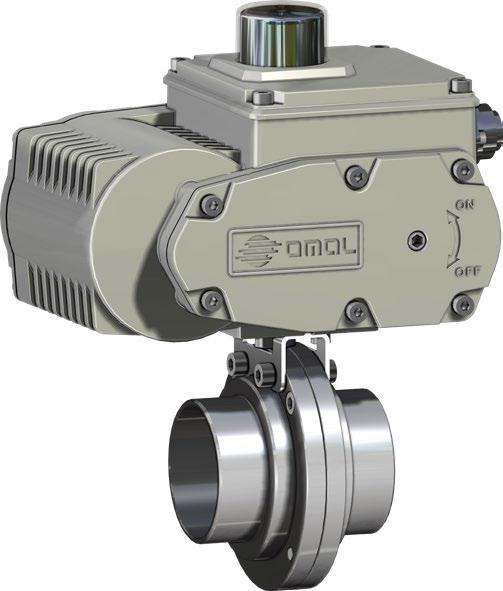

OMAL衛生級球閥 Item 490-492-493

CON ATTUATORE ELETTRICO ON-OFF

WITH ON-OFF ELECTRIC ACTUATOR

MISURA

SIZE

ARTICOLO “F/F GAS”

ARTICOLO “F/F DIN”

ARTICOLO saldare di testa

ATTUATORE

KIT montaggio

DN [mm]

[inch]

ITEM CODE “F/F GAS”

ITEM CODE “F/F DIN”

ITEM CODE butt weld

ACTUATOR

Mounting KIT

[mm]

DN 25

C490A5E06

C492A5E66

C493A5E86

EA0035A5C000

KCF052255

250,0

185,0

4,4

DN 32

1" 1/4

C490A5E07

C492A5E67

C493A5E87

EA0035A5C000

KCF052255

250,0

190,0

4,5

DN 40

1" 1/2

C490A5E08

C492A5E68

C493A5E88

EA0035A5C000

KCF052255

250,0

192,0

5,0

DN 50

C490A5E09

C492A5E69

C493A5E89

EA0035A5C000

KCF052255

250,0

198,0

5,5

DN 65

2" 1/2

C490A5G10

C492A5G70

C493A5G90

EA0070A5C000

KCF052255

250,0

208,0

5,8

DN 80

C490A5G11

C492A5G71

C493A5G91

EA0070A5C000

KCF053106

250,0

215,0

8,2

DN 100

C490A5I12

C492A5I72

C493A5I92

EA0130A5C000

KCF072257

280,0

247,6

11,5

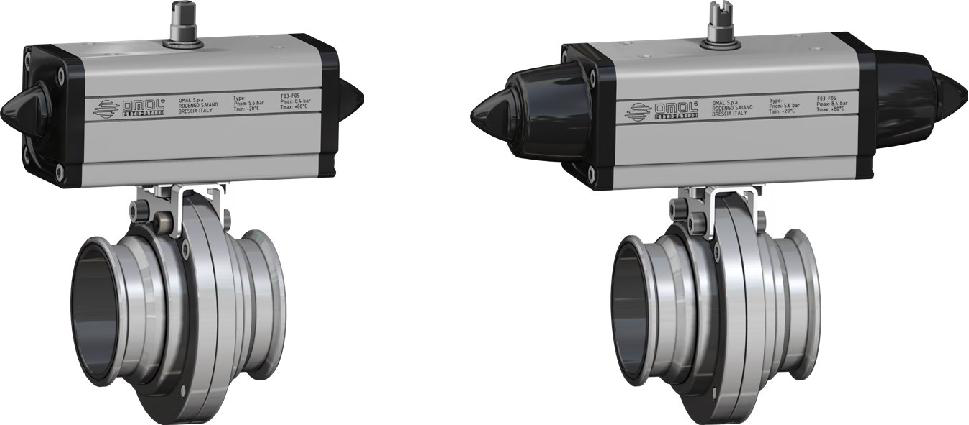

ITEM 494 CLAMP BS 4825 (DIN 32676 C SERIE)

CON ATTUATORE PNEUMATICO DOPPIO EFFETTO			*WITH DOUBLE ACTING PNEUMATIC ACTUATOR*
CLAMP SIZE	ARTICOLO CLAMP	ATTUATORE		KIT montaggio	L [mm]	H [mm]	Kg
[inch]	*ITEM CODE CLAMP*	*ACTUATOR*		*Mounting KIT*	L [mm]	H [mm]	Kg
[inch]	*ITEM CODE CLAMP*	*ACTUATOR*		*Mounting KIT*
1"	DG494H006	DAN0015411S		KCF042253	159,0	120,2	1,6
1" 1/2	DG494H008	DAN0015411S		KCF042253	159,0	127,2	2,2
2"	DG494H009	DAN0030411S		KCF042253	174,2	140,2	2,9
2" 1/2	DG494H010	DAN0045412S		KCF042254	188,5	155,5	3,4
3"	DG494H011	DAN0060412S		KCF052255	198,0	168,4	4,3
4"	DG494H012	DAN0106411S		KCF072257	237,0	193,3	6,5

CON ATTUATORE PNEUMATICO SEMPLICE EFFETTO			*WITH SPRING RETURN PNEUMATIC ACTUATOR*
CLAMP SIZE	ARTICOLO CLAMP	ATTUATORE		KIT montaggio	L [mm]	H [mm]	Kg
[inch]	*ITEM CODE CLAMP*	*ACTUATOR*		*Mounting KIT*	L [mm]	H [mm]	Kg
[inch]	*ITEM CODE CLAMP*	*ACTUATOR*		*Mounting KIT*
1"	SG494H006	SRN0015401S		KCF042253	233,2	127,2	2,2
1" 1/2	SG494H008	SRN0015401S		KCF042253	233,2	134,2	2,5
2"	SG494H009	SRN0030402S		KCF052255	258,8	151,4	3,8
2" 1/2	SG494H010	SRN0053401S		KCF075308	304,2	174,3	5,3
3"	SG494H011	SRN0060401S		KCF075752	338,5	185,0	9,3
4"	SG494H012	SRN0090401S		KCF105307	393,7	227,5	11,9

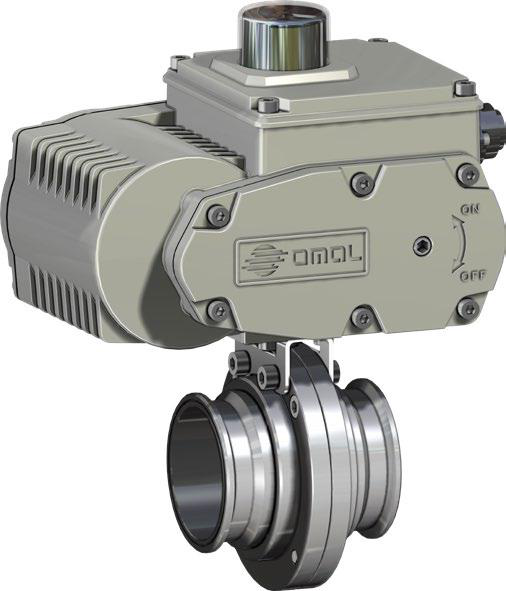

OMAL衛生級球閥 Item 490-492-493

	CON ATTUATORE ELETTRICO ON-OFF		*WITH ON-OFF ELECTRIC ACTUATOR*
CLAMP SIZE	ARTICOLO CLAMP	ATTUATORE		KIT montaggio	L [mm]	H [mm]	Kg
[inch]	*ITEM CODE CLAMP*	*ACTUATOR*		*Mounting KIT*	L [mm]	H [mm]	Kg
[inch]	*ITEM CODE CLAMP*	*ACTUATOR*		*Mounting KIT*
1"	C494A5E06	EA0035A5C000		KCF052255	250,0	185,0	4,4
1" 1/2	C494A5E08	EA0035A5C000		KCF052255	250,0	192,0	5,0
2"	C494A5E09	EA0035A5C000		KCF052255	250,0	198,0	5,5
2" 1/2	C494A5G10	EA0070A5C000		KCF052255	250,0	208,0	5,8
3"	C494A5G11	EA0070A5C000		KCF053106	250,0	215,0	8,2
4"	C494A5I12	EA0130A5C000		KCF072257	280,0	247,6	11,5
