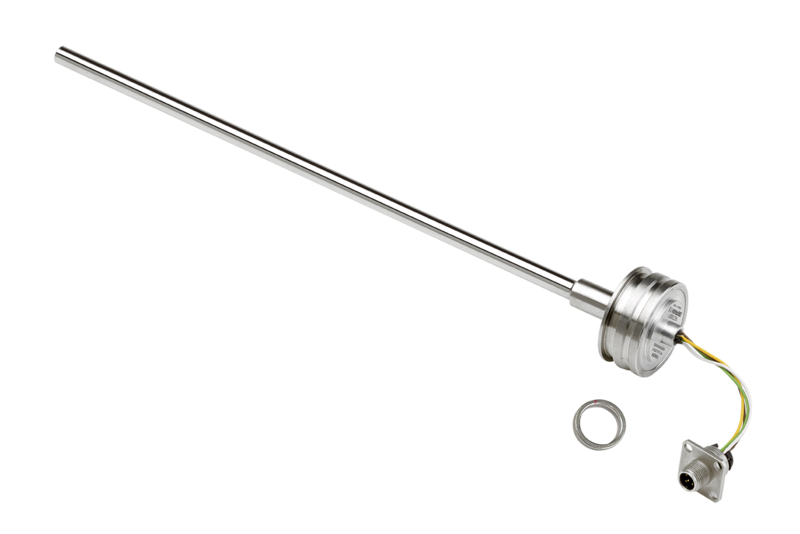

GEFRAN位置傳感器磁致伸縮 RK-5 Flanged Head Mobile Hydraulic Analogue Outputs

Overview

概述：

絕對式傳感器
行程范圍：50 至2500mm
直接模擬輸出(RK-5 N/K/E)
反向模擬輸出(RK-5 O/I/R)
工作溫度：-40...+105°C
抗振性(DIN IEC68T2/6 25g)
功率范圍：10VDC至32VDC電流輸出
功率范圍8VDC至32VDC電壓輸出

Description

產品描述：

非接觸線性位移變送器采用了杰佛倫創新的 ONDA磁致伸縮技術，從而獲得更長的使用壽命。非接觸線性位移變送器采用了杰佛倫創新的ONDA磁致伸縮技術，從而獲得更長的使用壽命。

Gefran的專利ONDA技術實現了便于安裝的緊湊型模塊化結構。RK-5是一種帶法蘭連接的磁致伸縮位置傳感器，完整安裝在油壓缸內。

設計獨特，配備各種不同的光標配置，安裝方便，完全兼容油缸制造商的各種規格。

工作溫度范圍從-40到 +105°C，工作壓力可達350巴，良好的耐震動性（25g）和耐沖擊性（100g）為重型用途所需提供必要的強度（如：移動式油壓）

高性能的測量變送定義為線性、磁滯和可重復性。

信號為電流和電壓輸出模型的模擬信號。

立即咨詢下一個產品

描述
參數
設備圖片

F066687 RK-5-A-A-0050-E 0000X060X00X0XX

F059913 RK-5-A-A-0050-N 0000X060X00X0XX

F061116 RK-5-A-A-0100-E 0000X060X00X0XX

F059914 RK-5-A-A-0100-N 0000X060X00X0XX

F066892 RK-5-A-A-0100-N 0000X150X00X0XX

F060603 RK-5-A-A-0130-N 0000X060X00X0XX

F060033 RK-5-A-A-0150-E 0000X060X00X0XX

F059994 RK-5-A-A-0150-K 0000X060X00X0XX

F059995 RK-5-A-A-0200-E 0000X060X00X0XX

F064100 RK-5-A-A-0200-N 0000X060X00X0XX

F059996 RK-5-A-A-0225-E 0000X060X00X0XX

F060034 RK-5-A-A-0225-N 0000X060X00X0XX

F060035 RK-5-A-A-0300-E 0000X060X00X0XX

F068078 RK-5-A-A-0300-E 0000X240X00X0XX

F059997 RK-5-A-A-0300-K 0000X060X00X0XX

F059915 RK-5-A-A-0300-N 0000X060X00X0XX

F069084 RK-5-A-A-0400-E 0000X150X00X0XX

F069427 RK-5-A-A-0450-N 0000X150X00X0XX

F066293 RK-5-A-A-0500-E 0000X240X00X0XX

F066771 RK-5-A-A-0600-E 0000X060X00X0XX

F066292 RK-5-A-A-0600-E 0000X240X00X0XX

F060064 RK-5-A-A-0600-N 0000X060X00X0XX

F068872 RK-5-A-A-0700-E 0000X060X00X0XX

F063224 RK-5-A-A-0700-E 0000X150X00X0XX

F068877 RK-5-A-A-0700-N 0000X060X00X0XX

F066685 RK-5-A-A-0750-E 0000X060X00X0XX

F060065 RK-5-A-A-0800-N 0000X060X00X0XX

F059916 RK-5-A-A-1000-N 0000X060X00X0XX

F066291 RK-5-A-A-1500-E 0000X240X00X0XX

F060066 RK-5-A-A-1500-N 0000X060X00X0XX

F064390 RK-5-A-A-1500-N 0000X240X00X0XX

F065573 RK-5-A-A-2000-E 0000X240X00X0XX

F060067 RK-5-A-A-2000-N 0000X060X00X0XX

F068008 RK-5-A-A-2250-E 0000X240X00X0XX

F059917 RK-5-A-A-2500-N 0000X060X00X0XX

F069411 RK-5-A-B-0050-E 0000X240X00X0XX

F062559 RK-5-A-F-0050-E 0000X000X00X0XX

F057220 RK-5-A-F-0050-N 0000X000X00X0XX

F068014 RK-5-A-F-0100-E 0000X000X00X0XX

F057221 RK-5-A-F-0100-N 0000X000X00X0XX

F059998 RK-5-A-F-0150-N 0000X000X00X0XX

F060002 RK-5-A-F-0300-E 0000X000X00X0XX

F057222 RK-5-A-F-0300-N 0000X000X00X0XX

F060004 RK-5-A-F-0400-K 0000X000X00X0XX

F062262 RK-5-A-F-0600-E 0000X000X00X0XX

F061744 RK-5-A-F-0600-N 0000X000X00X0XX

F063858 RK-5-A-F-0700-E 0000X000X00X0XX

F057223 RK-5-A-F-1000-N 0000X000X00X0XX

F069554 RK-5-A-F-1750-E 0000X000X00X0XX

F057224 RK-5-A-F-2500-N 0000X000X00X0XX
